Catalog Inventory
Products in INSTRUMENTATION FITTINGS & PRESSURE GAS (3)
Every individual product size, rating, and model extracted and ready for prompt supply.
Ex-Stock Dubai
#1
In Stock
View Details
S.S Com Fitting Nut & Ferull Type
Size: From 6 M to 12M & ¼” to ½”
#2
In Stock
View Details

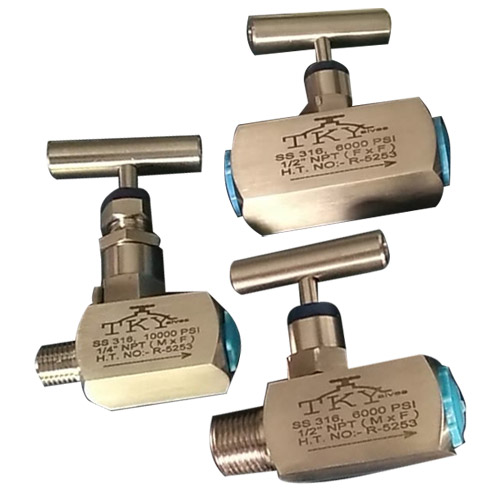

S.S Needle Valve 1000#, 3000#, 6000# & 10000# F/F, M/F
Size: From ¼” to 1” NPT
#3
In Stock
View Details

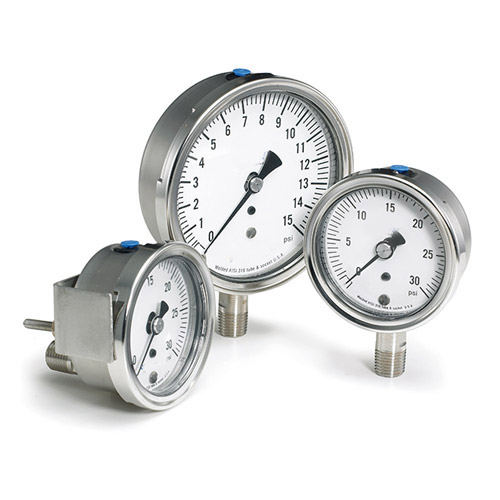

Pressure Gauge Full S.S Body & Part Liquid Filled 4” Dial & ½” Bottom Connection 2. ½” Dial & ¼” Bottom Connection
Size: From 0 to 15000 PSI
Standard Engineering Data
Category Technical Specifications
Size Range6mm to 12mm Tube OD & 1/4" to 1/2" / Needle Valves 1/4" to 1" NPT / Gauges 2.1/2" & 4" Dial
Pressure Rating / Class1000#, 3000#, 6000#, 10000# PSI / Gauges 0 to 15,000 PSI
Material Options
ASTM A276 / A182 Stainless Steel 316Bourdon Tube SS316Liquid Glycerin Fill
Governing Standards
ASME B31.3MSS-SP-99EN 837-1
End ConnectionsDouble Ferrule Tube OD, Male & Female NPT
Design & Construction Features
Gas-tight metal-to-metal sealing with vibration dampening ferrules
Non-rotating barstock needle valve stems with micro-metering tips
Shock-resistant glycerin dampening for pulsing pressure lines
Dual scale PSI and Bar dials with stainless steel case
Suitable Industry Applications
Turbine Gas Supply SkidsAnalyzer Sampling LinesWellhead Control PanelsHydraulic Test Benches
